Capabilities

App surfaces

A side panel that is genuinely part of the app. Pulse fetches it from the app on demand, renders it from a declarative spec, and sends its button presses and form submits back — signed, credential-injected, and never through the user's browser.

A live panel: stat tiles, a chart, a tappable list and two actions — all served by the app itself, fetched with the member's credential a moment before it rendered.

Server-side, always

The member's token is decrypted at call time and never leaves the server. The browser sees rendered output, not credentials.

A spec can never name a URL

Buttons carry an action id. Pulse resolves the destination from the installed manifest, so a spec cannot point a user's session anywhere.

Signed like Slack

Every interaction carries an HMAC over timestamp and body, so an app can tell a real Pulse call from anything else holding a token.

---

This page documents the protocol — what an app declares, what Pulse sends, what it accepts back, and every check in between. For the user-facing view of panels, see Apps. For authoring the manifest that declares one, see Building apps.

The shape of a surface

A manifest declares at most one right panel per app, plus one interactivity endpoint for the whole app:

{
  "capabilities": {
    "surfaces": {
      "rightPanel": [
        {
          "key": "expenses",
          "title": "Expenses",
          "description": "Your open expense reports",
          "dataUrl": "/pulse/panel",
          "ttlSeconds": 60
        }
      ],
      "interactivity": { "url": "/pulse/action" }
    }
  }
}

Two limits are design decisions rather than arbitrary caps:

• One panel per app. Sub-pages live inside the panel, through in-panel navigation, so a second panel would be an information-architecture decision — not a way to add a screen.
• One interactivity endpoint per app, not per panel. The action id already discriminates, and an app that had to publish a URL per surface would need a manifest revision just to add a button.

A panel with a static widget and no dataUrl is legal and renders without ever calling the app. ttlSeconds bounds caching between 5 seconds and 24 hours; the default is 60.

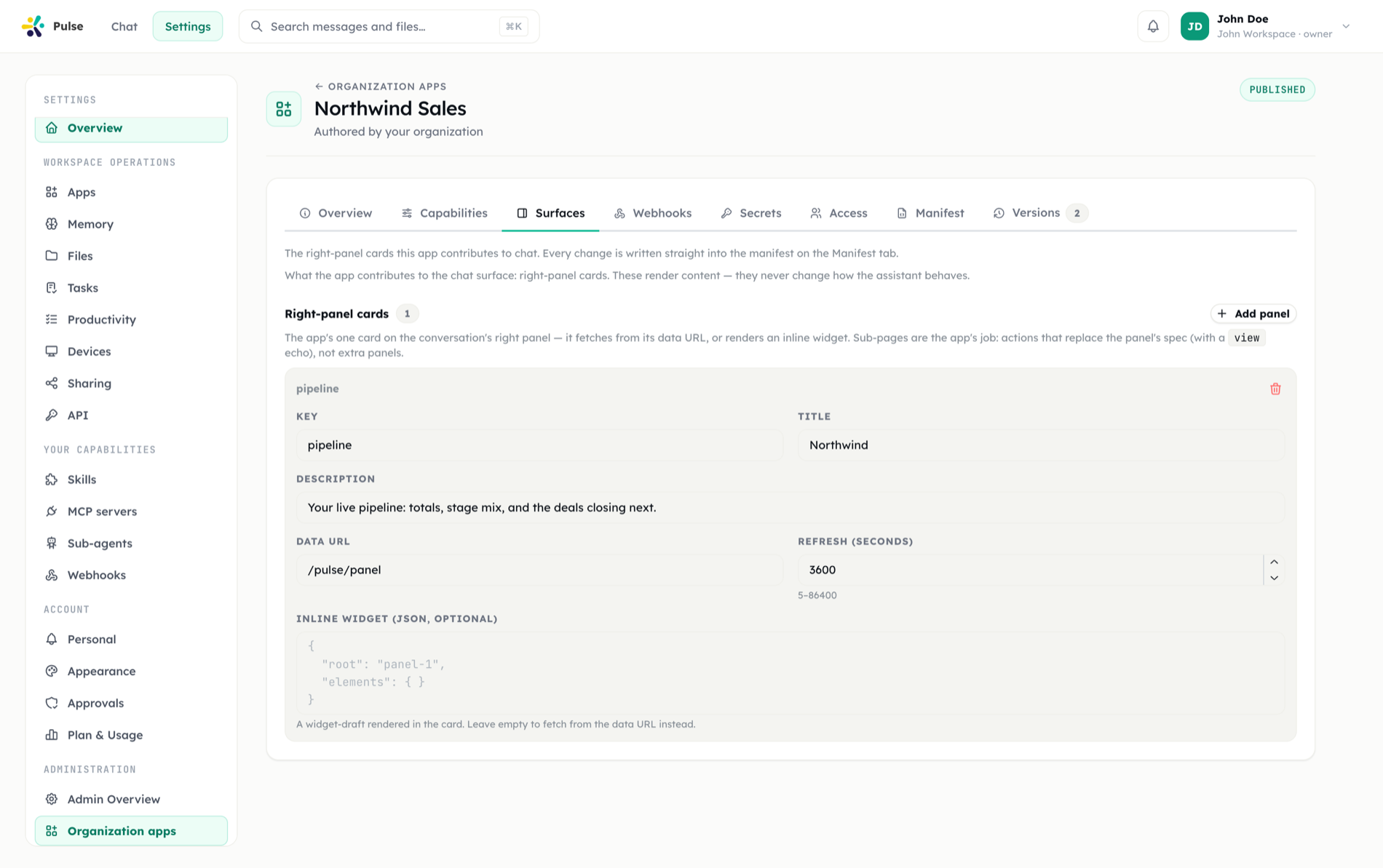

The admin side of the same thing: declare the panel once on the Surfaces tab, and everything after it is protocol.

Why the server, and not the browser

Both calls to the app come from Pulse's server, never from the user's browser. Three reasons, each of which is a rule the rest of the app platform already lives by:

1. The user's managed-auth token must be injected. It is decrypted at call time and never leaves the server — a browser fetch would have to hold it.
2. The destination must pass the SSRF egress guard against the app's own allowlisted origin. A browser cannot be made to honor that.
3. The request must be signed, so the app can tell a real Pulse interaction from anything else holding a token.

Fetching a panel

Pulse issues GET {baseUrl}{dataUrl} with the member's credential injected exactly as the manifest's auth.inject block specifies — header or query parameter.

Property	Value
Timeout	12 seconds
Maximum response	512 KB, enforced while streaming
Redirects	Not followed
Expected body	JSON — a surface spec

Failure handling is explicit rather than silent:

• A 401 or 403 from the app becomes a connect first prompt to the member, not a raw error. Without a grant there is nothing to inject, so asking is the better answer than passing along the app's 401.
• Any other non-2xx becomes a 502 carrying the app's own status and the first 300 characters of its response — with every secret value redacted out of the text first.
• A non-JSON body is reported as such.

Which installation serves the panel

A member may be covered by a personal installation and an org-wide one. The rule is:

1. Only enabled installations are considered.
2. A personal installation wins — it is the member's own act and carries no audience.
3. Otherwise the org-wide installation applies, but only if its audience covers this member.

Resolution matches the tool-binding rule exactly, because the member's grant hangs off one installation row — resolving a surface against a different row than the tools would make a connected app work on one surface and refuse on the other.

The audience check happens here, on the endpoint, not only in the panel list. Hiding the tab is not the same promise as refusing the data.

The component catalog

A surface spec is validated against a catalog that is deliberately separate from the one message widgets use.

Catalog	Who may author it	Contents
Message widgets	The model, in its own reply	Read-only components
App surfaces	Only an app — its manifest or its signed action response	Read-only components plus forms and buttons

That split is structural, not a rule someone has to remember: a button that fires a write against a third-party API must never originate from a sentence the model generated.

Read-only components: StackLayout, CardPanel, TextBlock, DataTable, StatGrid, NoticeCallout, KeyValueList, BarChart, LineChart, DonutChart.

Interactive components: ActionButton, ButtonRow, FormPanel, TextField, NumberField, SelectField, DateField, CheckboxField, HiddenField, DividerLine, BadgeRow, ListView, NavMenu.

A FormPanel names a state path — a JSON Pointer prefix its fields bind under. A submit button names the same path, which is how it knows which values to collect: one string ties a form to its button, with no implicit parent-child coupling in the spec.

ActionButton takes an optional confirm, and it is a string, not a boolean — the question is the whole point. "Are you sure?" trains people to click through; "Complete this effort report? The period will be locked." does not.

The action model

A spec never names a URL. A button carries an actionId from the app's own vocabulary, and Pulse resolves where to send it from the installation's manifest. A spec that could name its own endpoint would let anything that got a spec in front of a user make that user's browser — and credential — call anywhere.

Three action types:

Action	Behavior
submit	Collects a form's values and posts them to the app
invoke	Fires an action with no form behind it
openUrl	Handled locally by Pulse, host-checked at render time against the app's own origin

The underlying renderer's built-ins (setState, pushState, removeState, validateForm) are available on top and need no declaration. A change event may only submit or invoke — binding openUrl to a change event is rejected.

Dispatching an action

Pulse issues POST {baseUrl}{interactivity.url} with this body:

{
  "actionId": "approve_report",
  "panelKey": "expenses",
  "values": { "note": "Looks fine" },
  "params": { "reportId": "r_123" },
  "view": { "key": "report", "params": { "id": "r_123" } },
  "interactionId": "b0f1…"
}

and these headers:

Header	Meaning
X-Pulse-App	The app key
X-Pulse-Timestamp	Unix seconds
X-Pulse-Signature	v0=hex(hmac_sha256(secret, "v0:{timestamp}:{body}"))
auth inject	The member's credential, per the manifest's auth.inject

Verifying the signature

The scheme is Slack's, deliberately — every integrator has implemented it once already.

1. Read X-Pulse-Timestamp. Reject anything older than a few minutes to close the replay window.
2. Build the base string v0:{timestamp}:{raw request body} — the raw body, before any JSON parsing.
3. Compute HMAC-SHA256 with the app's signing secret and hex-encode it.
4. Compare v0=<hex> against X-Pulse-Signature in constant time.

The signing secret is generated per app and can be rotated or removed by an admin from the app's page. interactionId is minted per action and is a natural idempotency key for a handler that must not double-execute.

The response contract

An action response is a JSON object. Every field is optional; an empty {} means "acknowledged, nothing to change".

Field	Effect
ok	false marks the interaction as failed
toast	A short confirmation shown to the user
message	A longer message
errors	Field-level validation errors, mapped back onto the form
close	Closes the current modal
refresh	Re-fetches the panel from dataUrl
spec	Replaces the panel's contents in place
modal	{ title, size, spec } — opens a modal
panel	{ title, spec } — replaces the whole panel including its title
view	The app's "the user is now here" echo, stored client-side

Everything coming back is re-validated

An action response is the least trusted document in the platform: generated per click, by a third party, in response to user input. So:

• Every returned spec is validated again, against the same catalog the manifest was validated against.
• A spec that fails validation is reported, not dropped. Silently discarding it is indistinguishable from an app that answered with nothing — the button spins, the panel does not change, and nobody can say why.
• The view echo is bounded: the key is capped at 120 characters, at most 12 parameters are kept, each key at 64 characters and each value truncated at 500. It is stored client-side and replayed into every later panel fetch, so it gets the same treatment as a spec.

Pulse only ferries view — the meaning of its key and params is entirely the app's own. It is sent with every action so a handler can re-render where the user actually is, and echoed back when an action navigates.

In-panel navigation

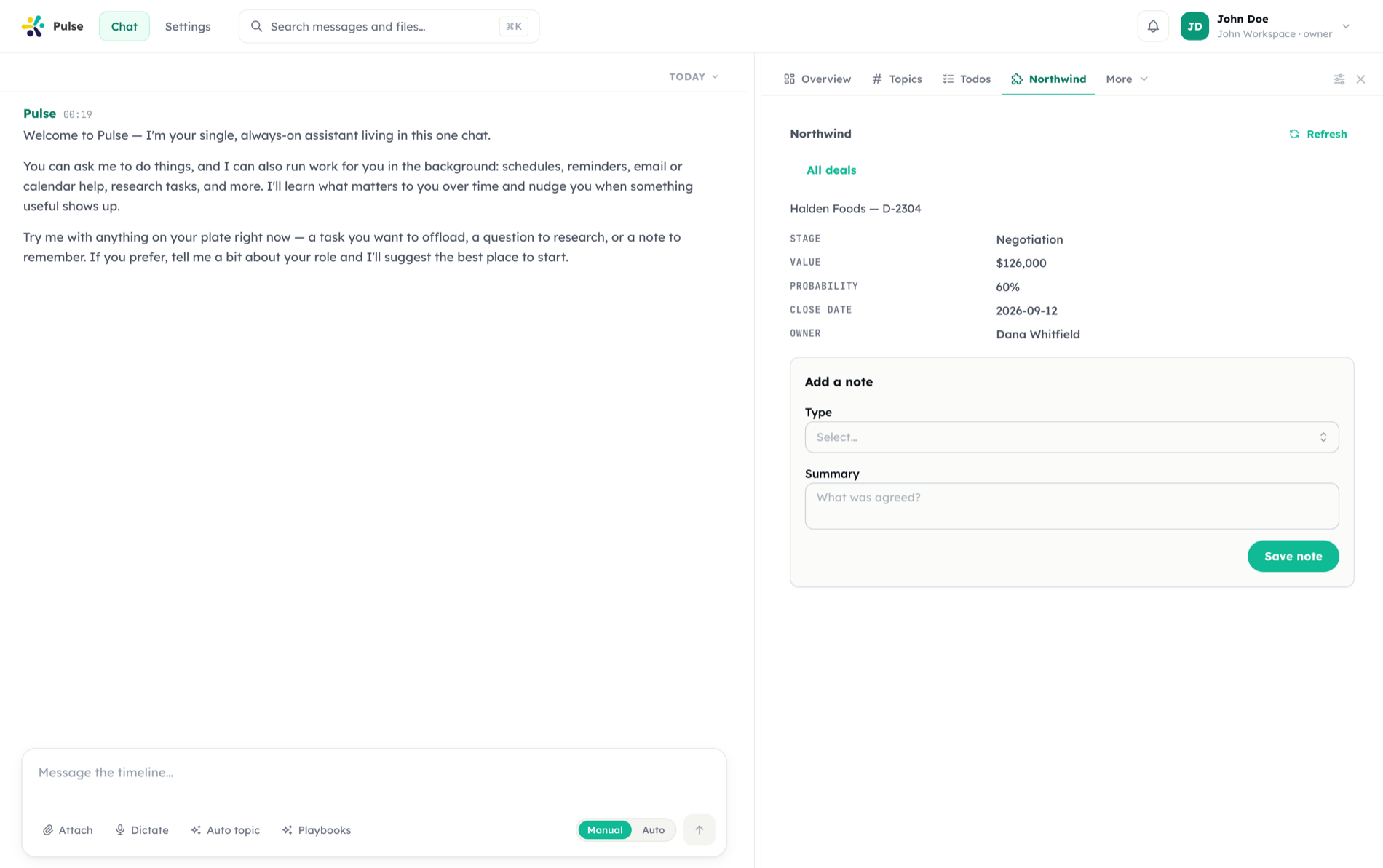

Tapping a row replaced the panel's contents in place. The app also echoed back where the user now is, so the next fetch renders this screen rather than the list.

Because one app gets one panel, sub-pages live inside it. The mechanism is the pair above:

1. A ListView row or a NavMenu entry fires an invoke carrying the record's parameters.
2. The app answers with a spec (or a panel) for the sub-page, plus a view naming where the user now is.
3. Pulse renders the new spec and remembers the view.
4. Every later fetch and action carries that view back, so the app can keep rendering the right screen — including after a refresh.

Guardrails, collected

Guardrail	Where it applies
Server-side only; the credential never reaches the browser	Both calls
Target must be the app's own origin or an allowlisted host	Both calls
Full SSRF egress check on the resolved address	Both calls
Redirects not followed	Both calls
12-second timeout	Both calls
512 KB response cap, enforced while streaming	Both calls
Secrets redacted from error text	Both calls
Audience re-checked on the endpoint	Both calls
Enabled-state check	Both calls
Payload signed with the app's secret	Actions
Specs validated against the app-surface catalog	Manifest and every action response
view echo bounded and truncated	Action responses
openUrl host-checked at render time	Client

Related

• Apps — states, audiences, panels, and connecting
• Building apps — the manifest that declares a surface
• Security & governance — egress control and secret storage
